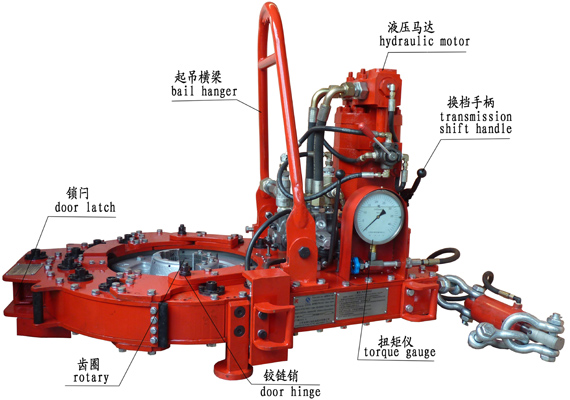

Model TQH340-35Y tong is a Chinese version of Weatherford 16-25 tong. It’s a hydraulic motor-driven tong capable of running pipe or casing from 5.1/2 to 13.3/8 inches in diameter. Changing the rotary and jaws, the power tong can run pipe or casing from 13.3/8 to 16 inches in diameter. If change the jaws, the tong can run pipe or casing from 4 to 5.1/2 inches in diameter. With a 32 inch (813mm) handle, the tong can produce up to25,815lb·ft.(35KN·M) in low gear, forward or reverse operation. All the major consumable parts of this tong are interchangeable with the OEM Weatherford 16-25 tong.
Model TQH340-35Y is a hydraulic motor-driven tong capable of running pipe or casing from 5.1/2 to 13.3/8 inches in diameter. Changing the rotary and jaws, the power tong can run pipe or casing from 13.3/8 to 16 inches in diameter. If change the jaws, the tong can run pipe or casing from 4 to 5.1/2 inches in diameter. With a 32 inch (813mm) handle, the tong can produce up to25,815lb·ft.(35KN·M) in low gear, forward or reverse operation.
Main technical parameter:
序号
|
参数 型号
|
TQH340-35Y
|
1
|
适用管径
Casing size
|
mm
|
φ140~φ340
|
in
|
5.1/2~13.3/8
|
2
|
液压系统最大工作压力
Maximum working pressure
|
MPa
|
17.5
|
psi
|
2500
|
3
|
液压系统额定流量
Rated flow
|
L/min
|
227
|
gpm
|
70
|
4
|
低速档最大扭矩
Maximum torque for low gear
|
N·m
|
35000
|
lbf·ft
|
25815
|
5
|
高速档最大扭矩
Maximum torque for high gear
|
N·m
|
8535
|
lbf·ft
|
6295
|
6
|
钳头转速
Maximum rpm
|
高速档(High Gear) rpm
|
47
|
低速档(Low Gear) rpm
|
11
|
7
|
外形尺寸
Dimension
|
mm
|
1358×820×993
|
in
|
53.5×32.3×39.0
|
8
|
重量
Weight
|
kg
|
685
|
lb
|
1507
|

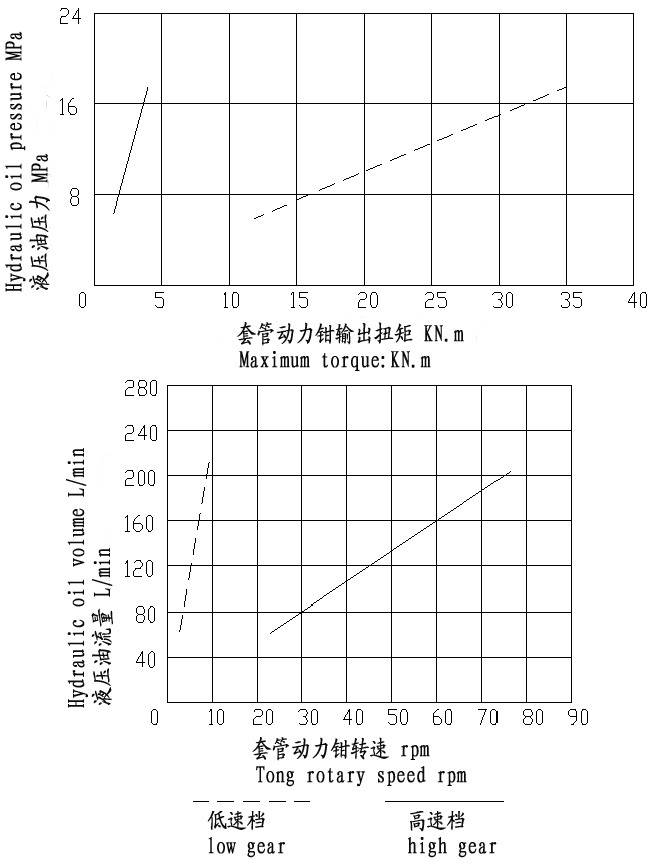

2、TQH340-35Y套管动力钳的性能曲线示意图
Typical performance curve for model TQH340-35Y power tong
图2 套管动力钳性能曲线图
Figure 2 typical performance curve for the tong
