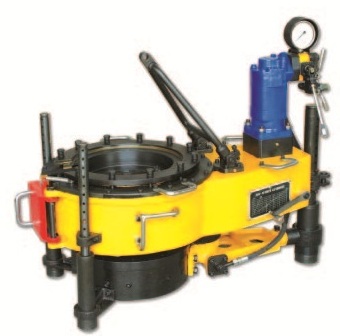

Teda Model ZQ 127/25 Hyd Tong complete with backup tong, lift, spanner, hyd hoses and torque gauges, with 4” die seats inserted in the tong, also come with spare die seats

( 2 ea 2-7/8” die seats, 4 ea 3-1/2” die seats, 4 ea 4-1/2” die seats, 4 ea 5” die seats, 4 ea 5-1/2” die seats and 2 ea 6-1/8” die seats ) to handle all the below pipes:

Pipe size range: 2 3/8" - 3 1/2" drill pipe, 2 3/8" - 4 1/2" tubing and 4 1/2" - 5 1/2" casing



Pipe size range:  2 3/8"- 3 1/2" drill pipe, 2 3/8"- 4 1/2" tubing and 4 1/2" - 5 1/2" casing

Other Spec:

Rated Oil Supply Pressure 16Mpa

Rated Oil Supply Amount 120 lpm

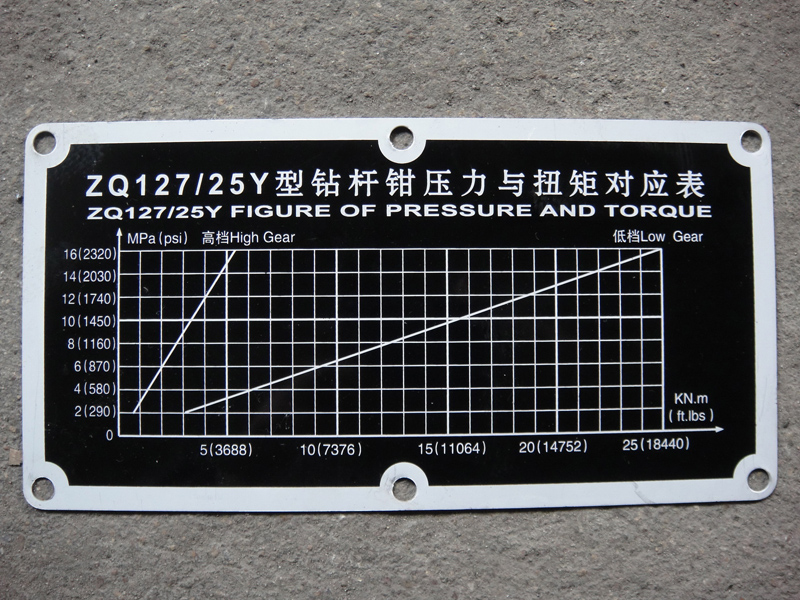

Rated High Gear Torque 5.1 KN.m

Rated Low Gear Torque 25 KN.m

Rated Rotation Speed at High Gear 43 rpm

Rated Rotation Speed at Low Gear 8 rpm

Overall Weight 680 kg

Dimension of Combination tongs 1270×770×780mm
