Y

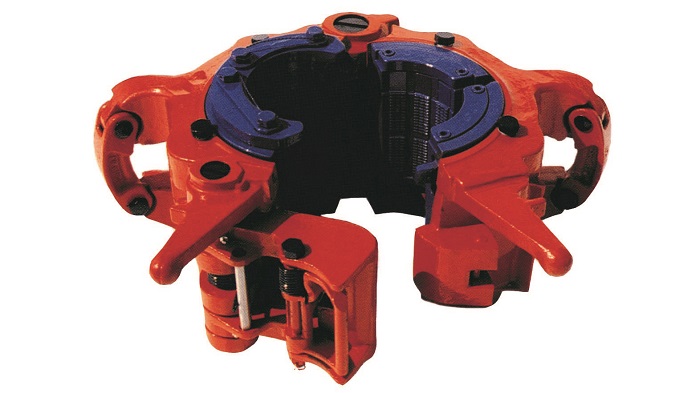

Series Slip Type Elevators
-
The
slip type elevators are indispensable tools in handling and hoisting drill
pipes, casings and tubing in oil drilling and well tripping operation.
-
It's
especially suitable for hoisting integrated tubing sub, integral joint casing
and electric submersible pump column.
-
The
products shall be designed and manufactured according to API Spec 8A/8C
Specification for drilling and duction hoisting equipment.
|
Model
|
Size
|
Rated Capacity
|
|
mm (in)
|
KN
|
Short Tons
|
|
HYT
|
60.3-88.9(2 3/8-3 1/2)
|
1350
|
150
|
|
YT
|
33.4-88.9 (1.315~3 1/2)
|
675
|
75
|
|
MYT
|
33.4 ~73 (1.315~2 7/8)
|
360
|
40
|
|
LYT
|
26.7-52.4 (1.05~1 1/16)
|
180
|
20
|
|
HYC
|
88.9~139.7 (3 1/2~7 5/8)
|
1800
|
200
|
|
MYC
|
88.9-117.8 (3 1/2~7)
|
1125
|
125
|
|
YC
|
88.9-117.8 (3 1/2~7)
|
675
|
75
|
|
|
|
|
