Varco style Model SE500 Casing Elevator/Spider Units are pneumatically operated power tools, capable of handling casing sizes from 4.1/2 to 24.1/2 inches, with string loads of 4500kN(1,000,000 pounds).
These units have been refined and incorporate such engineering features as air powered operation with safety latch, and four independent slips, as standard equipment.

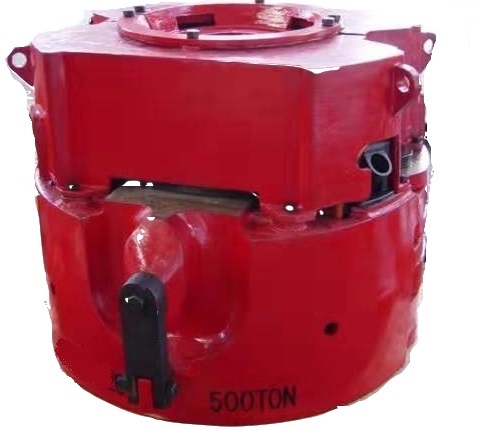

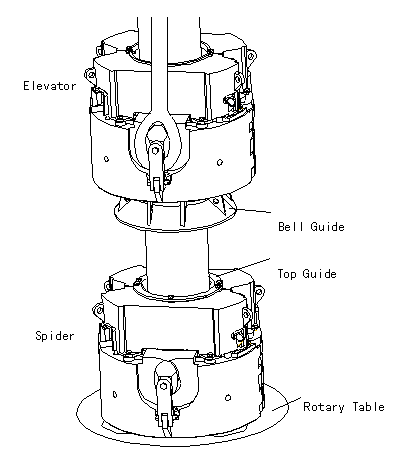

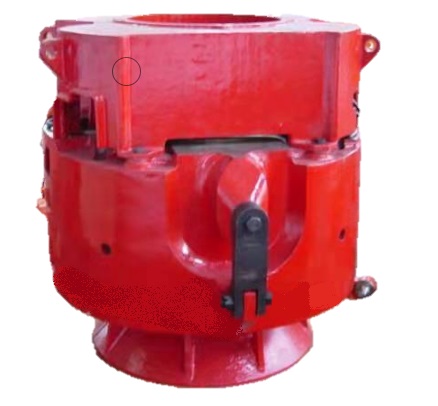

The main bodies can be dressed as a casing elevator or spider. The elevator consists of an upper unit using a bell guide and bottom guide. The lower unit is dressed as a Spider with a top guide that centers the Spider over the master bushing.
The elevator is attached to the derrick traveling block and hook with 500 ton standard API links.
The Spider locates directly on the pin drive master bushing (27.1/2 MSPC, 37.1/2 and 49.1/2 MPCH), and square drive master bushing (27.1/2 MSS), and will accommodate any other master bushing when used with an Adapter Plate of our Company.
