Our Integral Blade Stabilizer (IBS) is a one piece rotating stabilizer which can be placed near bit or up in the drill string. It is a one piece construction manufactured from high strength alloy steel. It prevents differential sticking of the drill string by stabilizing the BHA and keeping drill collars and drill pipes away from the borehole wall. This reduces vibration, drill pipe whirl, and wellbore tortuosity; furthermore, the stabilization maintains drilling trajectory whether drilling straight, horizontal, or directional wells.
Optional Stabilizers

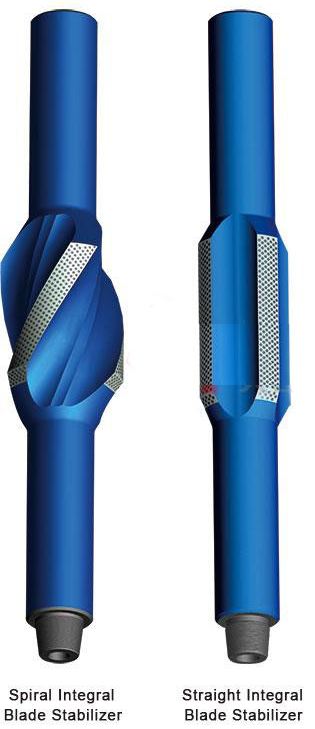

We offer two options for IBS:
●Spiral Integral Blade Stabilizer;
●Straight Integral Blade Stabilizer;
When Ordering Please Specify:
●Hole size or required blade O.D.;
●Number of blades required (3 or 4 are standard styles);
●Straight or spiral blades;
●Hardfacing type ;
●Top and Bottom Connections;
●Body diameter required;
●String or Near Bit application;
●Special features SRG on connections, bored for float etc.
