  1412 Ram Blowout Preventer

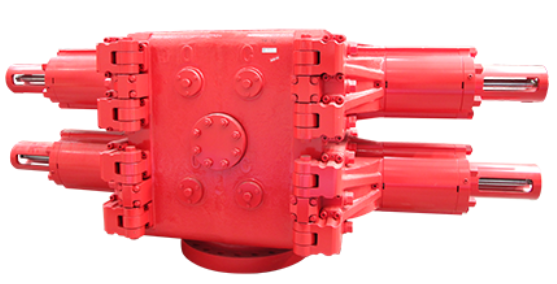

Shaffer LWS style Ram BOP

Appearance Specification DownLoad

Shaffer LWS style Ram BOP Structural Features



● The pressure parts are made of high quality alloy steel with good strength and impact toughness.

● The high pressure blowout preventer side door seal adopts a combination seal ring, and the well pressure assisted sealing ability is strong.

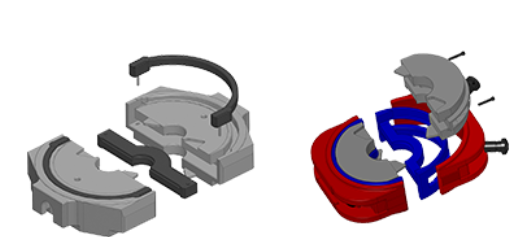

● Floating or integral ram, reliable sealing and easy replacement

● With buried oil circuit, the bearing hinge is separated from the hydraulic hinge

● The hinge structure is simple and easy to assemble and disassemble

● Large arc type on both sides of the housing chamber, surrounded by arc transitions, reducing the stress peak of bearing pressure

● Compact structure, smaller than similar foreign products

● The pipeline can be processed inside the anti-low temperature ram blowout preventer housing, so that steam flows inside the blowout preventer and radiates heat (Optional)
