Ball Screw Operator Gate Valve, also called Frac Valve, is a type of large bore high pressure gate valve which is the major component of a frac tree. This valve is often used on the top of the wellhead for the frac job to isolate the fluid from the well.
Our frac valves are designed in accordance to API 6A and NACE MR-01-75, with strict quality control conforming to ISO registration.

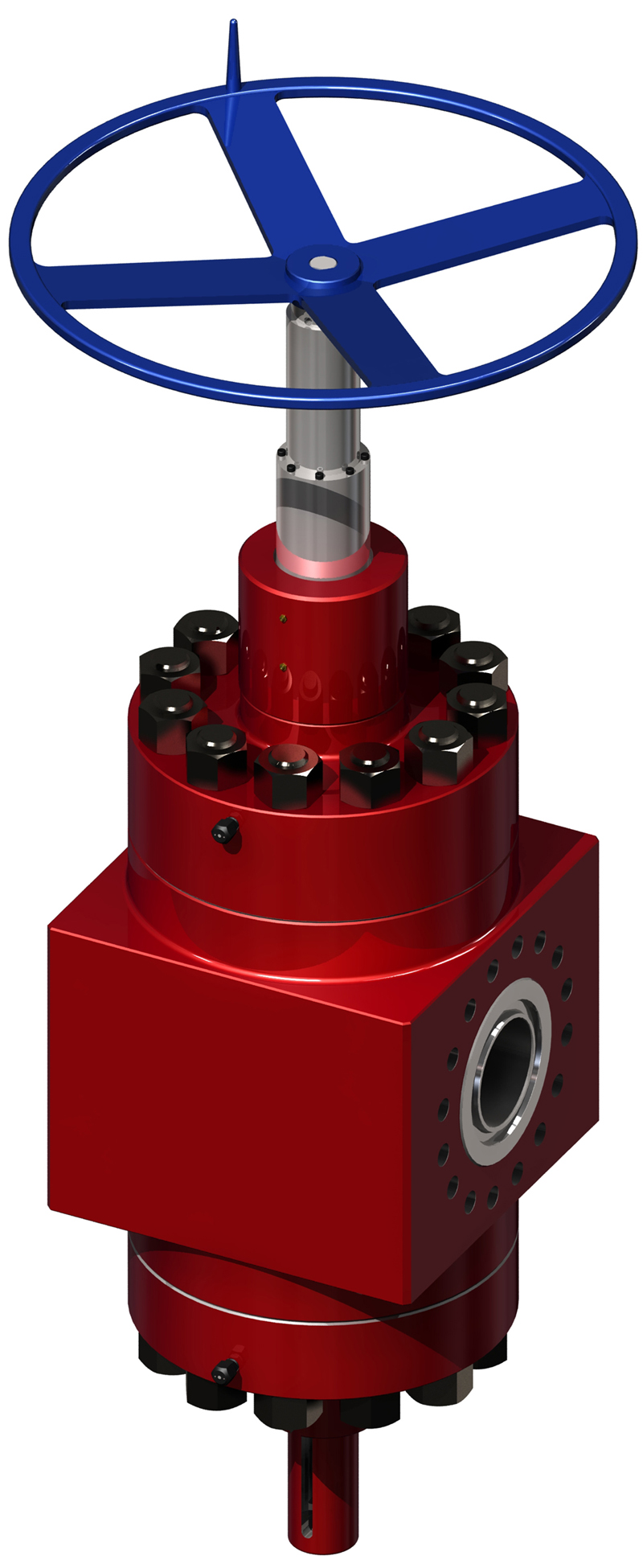

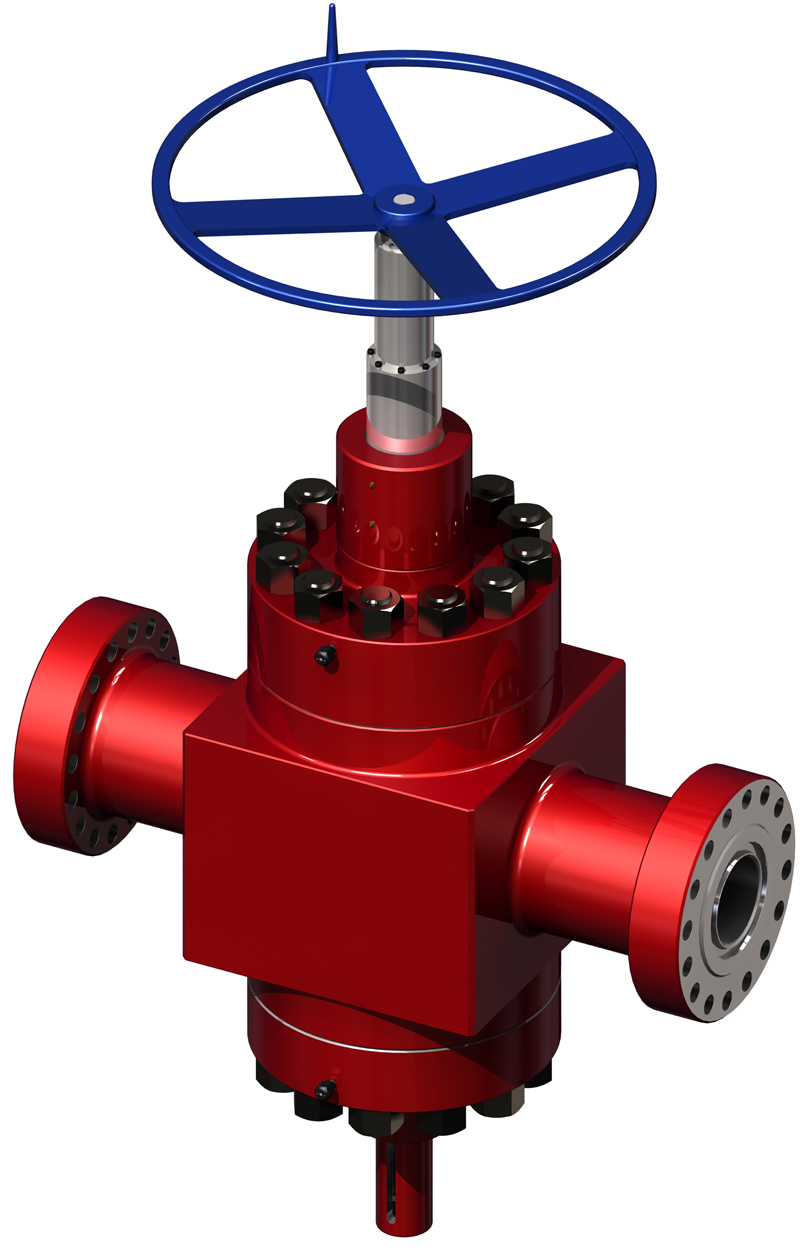

This type of the frac valve have either flanged end connections or studded ones. They also come with manual or hydraulic operation types. We can supply both types of the valves.
• Forged Body and Bonnet.
• Low operation torque under pressure.
• Metal to metal sealing gate-to-seat and the seat-to-body.
• Ball screw stem when manual operation.
• Bi-directional slab gate valve for high pressure
• Flanged & studded connections are available.
• The stem packing is a pressure energized seal and can resist severe Temperature and fluids.
• Critical application from 3000 psi to 20000 psi pressure.
