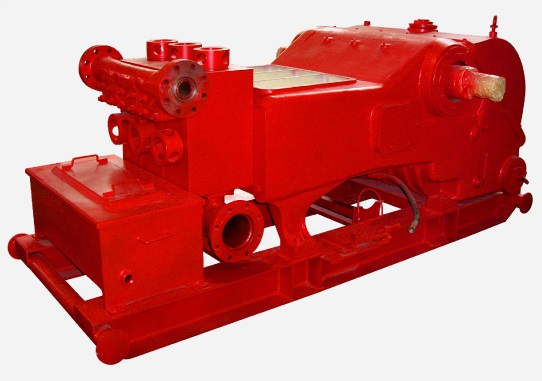

Our Model PAH-350 single acting triplex
drilling mud pump is 100% interchangeable with Gardner Denver PAH 350HP triplex
drilling mud pump.
The major design features of our PAH-350
pump are as follows:
1.1.1 The shell, crankshaft,
connection rods and crosshead are made of nodular cast iron.
1.1.2 The crankshaft and gear are
supported by aligning roller bearings.
1.1.3 The gear pairs are made of
casted alloy steel with medium hard tooth face, separate type skewed tooth
transmission is adopted with the good features of even force and smooth
operation.
1.1.4 The built-in oil pump is used
to lubricated all rotary parts by force and all accessories of the oil pipe are
fastened outside the shell so that it is easy to maintain.
1.1.5 The hydraulic cylinder is made
of forged alloy steel and its top and side are thread valve covers
1.1.6 The intermediate rod is
connected to the piston rod by clamps
1.1.7 At the corners of crankshaft,
split-body bearing bush is used to take the place of bearings.
