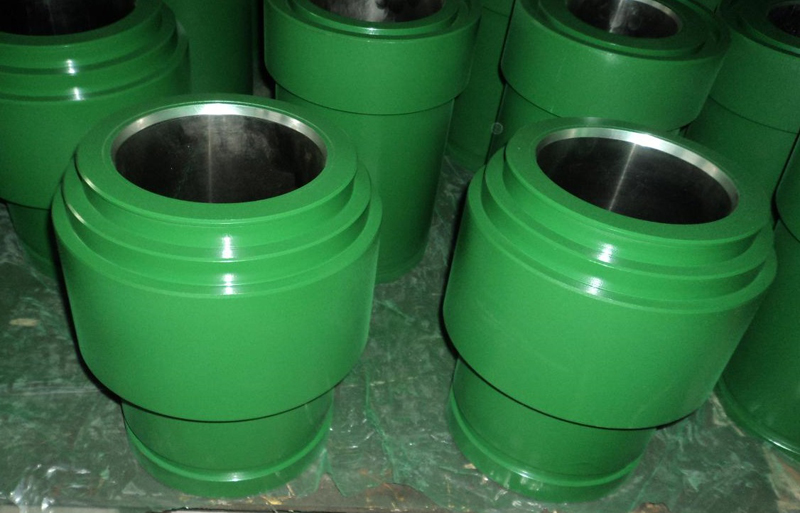

Hardened Liners

Our hardened liners offer economy in a liner that is made for normal to mildly corrosive mud conditions. These liners are hardened and heat treated under strict quality control to a minimum of 60 Rockwell C hardness and a depth of 0.125 inches. Each liner is honed to a mirror-like finish for smooth and even-wear during the life of the liner and is machined to close tolerances to assure easy installation and long life.

Our hardened liners are suitable to the following brand name mud pumps:

Aker Wirth: TPK 7-1/4” x 8-1/2”, TPK 7” x 10”, TPK 7-1/2” x 12”, TPK 7-1/2” x 14”

Brewster: B-550, B-750, B-1000, 1100T, B-1300

Drillmec: 7TS600, 9T1000, 12T1600, 14T2200, 7T450, 8T300M, 8T600M, 9T800, 10T1300, 12T1600

Elis Williams: W440, W446, E-447, E-600, E-800, E-1100, E-1300, E-1600, E-1700, E-2200

Emsco: F-1300, F-1600, FB1300, FB1600, F-1000, F-800, F-500, F350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700

Gardner Denver: PAH Series, PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, FG-KXG, FQ-FXQ, FF-FXF, FF-FXP

Gaso: 1563, 1740-55, 1844-60, 2010-50, 2200-49, 2651, 2652

Ideco: T-500, T-800, T-1000, T-1300, T-1600

National: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14P220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400

Oilwell: A-560/600-PT, A-850-PT/A-1100PT, A-1700PT/A-1400-PT

OPI: 350D, 500DL, 700HDL, 1000HDL

Weatherford: T5, T10, T25, T40, T50, T92

Wilson: 600, 900
