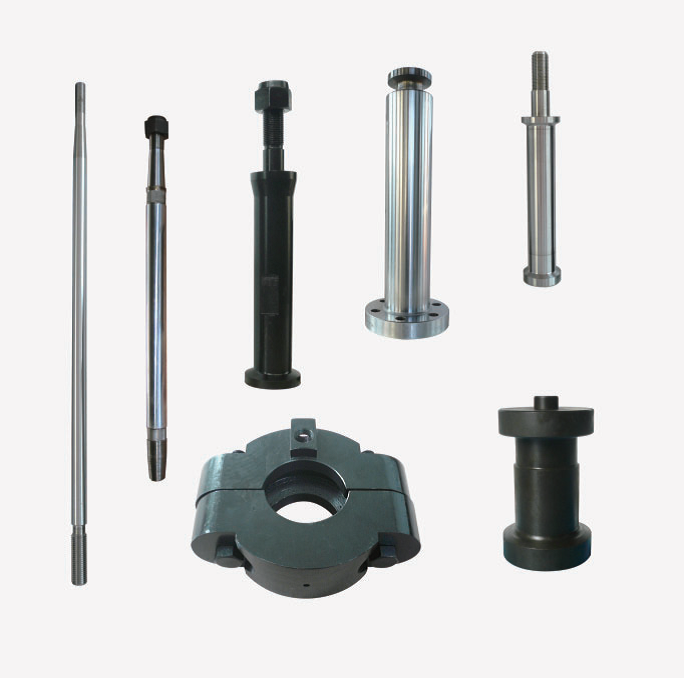

Our Piston rods are manufactured to exacting standards to meet today’s tough oilfield requirement. Manufactured from high quality alloy steel, surface is induction hardened for maximum case hardness and core strength – hard on the outside and tough on the inside. Precision ground mirror surfaces meet rigid quality control standards and minimize wear.

We offer a full range of clamps for mating the piston rod to the crosshead extension ( pony ) rod. Machining tolerances are tightly held to assure proper fit and alignment of the adjoining components.



Our piston rods and clamps are suitable to the following brand name mud pumps:

Aker Wirth: TPK 7-1/4” x 8-1/2”, TPK 7” x 10”, TPK 7-1/2” x 12”, TPK 7-1/2” x 14”

Brewster: B-550, B-750, B-1000, 1100T, B-1300

Drillmec: 7TS600, 9T1000, 12T1600, 14T2200, 7T450, 8T300M, 8T600M, 9T800, 10T1300, 12T1600

Elis Williams: W440, W446, E-447, E-600, E-800, E-1100, E-1300, E-1600, E-1700, E-2200

Emsco: F-1300, F-1600, FB1300, FB1600, F-1000, F-800, F-500, F350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700

Gardner Denver: PAH Series, PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, FG-KXG, FQ-FXQ, FF-FXF, FF-FXP

Gaso: 1563, 1740-55, 1844-60, 2010-50, 2200-49, 2651, 2652

Ideco: T-500, T-800, T-1000, T-1300, T-1600

National: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14P220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400

Oilwell: A-560/600-PT, A-850-PT/A-1100PT, A-1700PT/A-1400-PT

OPI: 350D, 500DL, 700HDL, 1000HDL

Weatherford: T5, T10, T25, T40, T50, T92

Wilson: 600, 900
