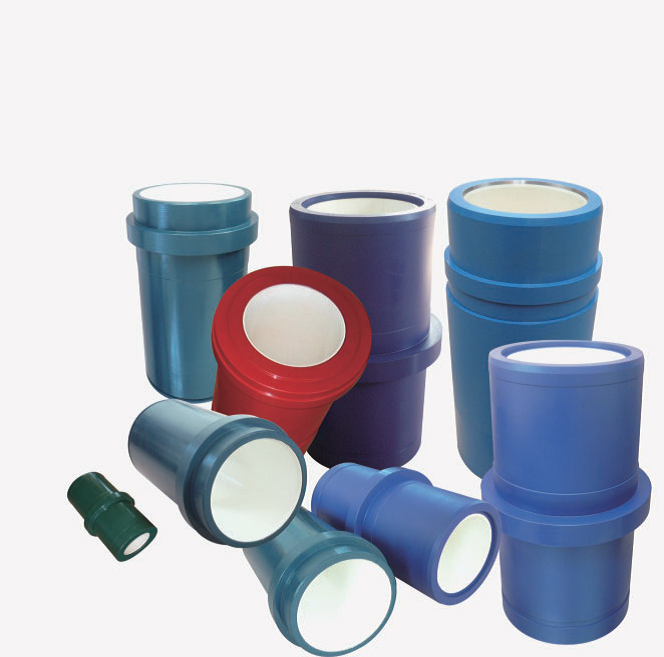

Our ceramic liners combine the strength of a forged steel outer shell with the abrasion and corrosion resistance of a ceramic inner sleeve. We provide Zirconia (ZrO3) sleeves as well as Alumina ( AI2O3) sleeves, of which Zirconia exhibits better impact strength, higher hardness and be honed to finer surface finishes than alumina.



Features:

Higher hardness with wear resistance.

Stronger erosion resistance.

Higher pressure resistance.

Lower friction with the elastomer-and-metal pump pistons.

Our ceramic liners are suitable to the following brand name mud pumps:

Aker Wirth: TPK 7-1/4” x 8-1/2”, TPK 7” x 10”, TPK 7-1/2” x 12”, TPK 7-1/2” x 14”

Brewster: B-550, B-750, B-1000, 1100T, B-1300

Drillmec: 7TS600, 9T1000, 12T1600, 14T2200, 7T450, 8T300M, 8T600M, 9T800, 10T1300, 12T1600

Elis Williams: W440, W446, E-447, E-600, E-800, E-1100, E-1300, E-1600, E-1700, E-2200

Emsco: F-1300, F-1600, FB1300, FB1600, F-1000, F-800, F-500, F350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700

Gardner Denver: PAH Series, PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, FG-KXG, FQ-FXQ, FF-FXF, FF-FXP

Gaso: 1563, 1740-55, 1844-60, 2010-50, 2200-49, 2651, 2652

Ideco: T-500, T-800, T-1000, T-1300, T-1600

National: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14P220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400

Oilwell: A-560/600-PT, A-850-PT/A-1100PT, A-1700PT/A-1400-PT

OPI: 350D, 500DL, 700HDL, 1000HDL

Weatherford: T5, T10, T25, T40, T50, T92

Wilson: 600, 900
