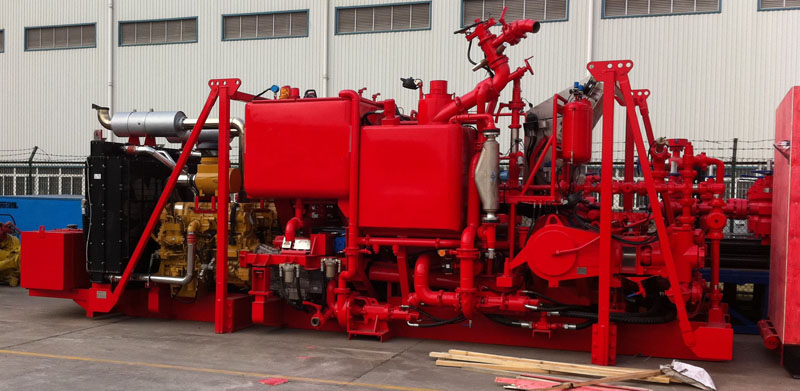

Our dual pump cementing unit is a complete mixing and pumping unit that can be skid or trailer mounted. This unit is state-of-the-art in mixing and automatic control. This system is designed for the most demanding oil and gas well cementing requirements. The quality of design, component selection, and quality manufacture makes it a benchmark in the industry.

The high energy mixing system can mix the most difficult slurries and the ACM automatic density control will provided superior density control. The pump unit can be utilized for a variety of pumping services including acidizing (less than 30%), cementing, pressure testing and fracturing within the limits of the available horsepower. The inline triplex pump installation makes the maintenance and service of pumps easier.

This system is designed for minimum maintenance and operating in extremely harsh environment with temperatures ranging from -25 ^oC to 50 ^oC and relative humidity up to 90%.

1.1 Key Points

n  Continuous High Energy Mixing

n  Auto Density Control

n  Air Inlet Shutoff

n  Overpressure Shutdown

n  SPS Packing System

n  Non-Radioactive Densimeter

n  Stainless Steel Console

n  Engraved Stainless Panel

n  Dual Scale Gauges

n  Remote Monitoring And Data Record System (optional)

n  Integral High Pressure Iron

1.2 Application

n  Untilies Pumping Cement, Brines, Acids, Pressure Testing And Well Testing

n  Meters Mixing Fluids

n  Mixing Cement Slurry

n  Picks Up Fluids from Remote Sources

n  Used For Offshore and Onland Operation

1.3 Specification

Our Dual Pump Cementing Unit comprises of the following components.

l   Two (2) CAT C15 engine, 475 HP each

l   Two (2) ALLISON 4700 OFS transmission

l   Two (2) Spicer 1800 series drive shafts

l   One (1) TPH400 X 4.5" Dia. Plunger Triplex Pump

l   One (1) TPH400 X 4.5" Dia. Plunger Triplex Pump

l   One (1) Close-loop hydraulic system

l   One (1) 8 bbl mixing tank

l   One (1) 2X10 bbl displacement tank

l   Two (2) SERVA 6x5 centrifugal pumps (cement mixing recirculation and transfer to triplex pumps)

l   One (1) Serva 4x3 centrifugal pump (mix water and displacement fluid)

l   One (1) High Energy Mixing system

l   Automatic Control Mixing System(ACM-IV) for density

l   One (1) Fuel day tank 900 L, separately placed

l   One (1) Air reservoir, 20 gal

1.4 Performance

Weight	21t
Dimension	7300 mm(L)X2550mm(W)X3100 mm(H)
Max. Pres	11,200 PSI (With 4.5” Fluid End)
Max. Flow	3.0 m3/min (W/ two 4 1/2” Fluid End)
Density Range	1.0～2.5 g/cm3±0.024 g/cm3
Mixing Capacity	0～14.5 BPM (0-2.3 m3/min)
Working Temp.	-25ºC～50ºC
Working Time	>2 Hours (Under Max. Press)； >3 hours (Under Max. Flow)

















The external distance between the main beams shall less than 2.3m; the skid is suitable for crane lifting and winch truck as well;
