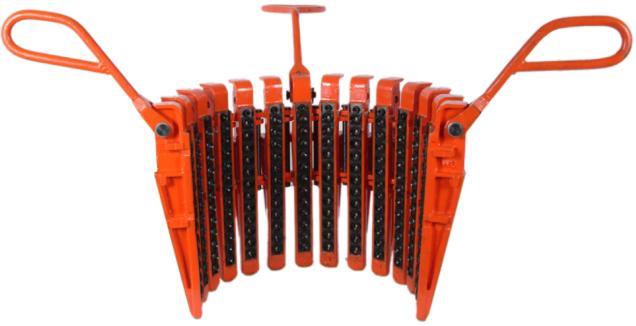

Our CMS-XL series Casing Slips are used to handle casings from 6-5/8” to 30” diameter by adding or removing body segments and installing the proper button sizes. All body segments of the slips are made from high-strength alloy steel, heat treated and NDT tested. With a 4” API taper and fitted with circular button inserts, our CMS-XL series slips enable the self-centering of the segments to give a full wrap-around grip of the casing. The grip length of our casing slips is 13⅛".

Technical Spec of CMS-XL series Casing Slips

Tubular OD		Insert Code-Qty	Total number of slip	Weight		Upper Bowl Size of the Casing Bushing (in)	Max Load tons(kN)
in	mm	Insert Code-Qty	Total number of slip	lb	kg	Upper Bowl Size of the Casing Bushing (in)	Max Load tons(kN)
6⅝	168.3	2628-144	12	196	89	14⅜	250(2250)
7	177.8	2619-144		184	83.5
7⅝	193.7	2630-144		166	75
8⅝	219.1	2630-156	13	181	82
9⅝*	244.5	2630-168	14	192	87	16¼
10¾*	273.1	2630-180	15	209	95	16¼
11¾*	298.5	2627-204	17	260	118	19
13⅜*	339.7	2630-216	18	258	117	19
16*	406.4	2631-252	21	308	140	21¾
18⅝*	473.1	2626-300	25	367	166.5	26
20*	508	2631-312	26	383	174	26
24*	609.6	2631-360	30	443	201	30
26*	660.4	2631-396	33	486	221	32
30*	762	2631-444	37	546	247.5	36
Note: * This size if furnished with 4 handles

Explosive Drawing and Parts List

S/N#	Name	S/N#	Name
1	Left and right handle	8	Center handle
2	Right slip segment	9	Hinge pin/w cotter
3	Handle pin	10	Split pin
4	Handle pin washer	11	Inserts
5	Split pin	12	Screw
6	Left slip segment	13	Screw washer
7	Center slip segment
