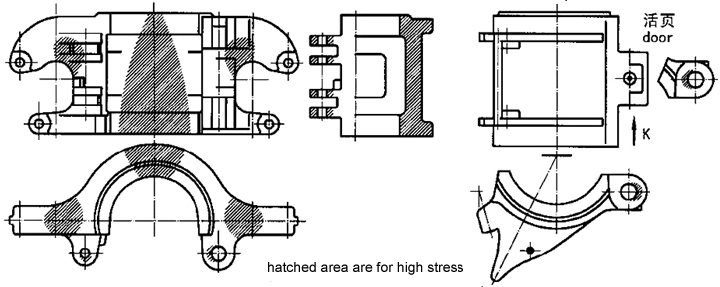

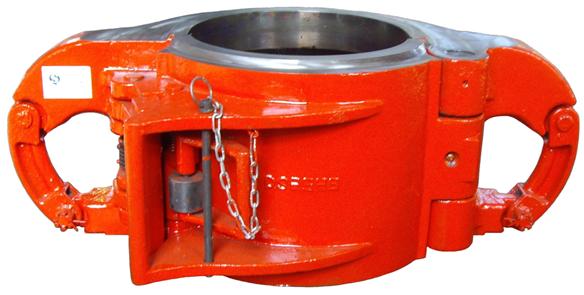

SLX elevator consists of body, door, latch, latch pin, latch lock and etc. body and door are jointed by hinge pin, and latch is fixed to body by latch pin and is force by latch spring, latch lock is equipped to door and can function with the force of latch lock spring. SLX elevators are designed with safety pin for double safety lock. Each elevator is equipped with two link blocks to prevent disengaged from elevator links in operation.
To use the elevator, only grasp and pull outward the handle of the latch lock, then the latch lock can be disengaged from latch, and the roller fixed to the latch lock force the latch to disengage from door, pull out more, then the elevator can be open. When push the door to the joint position, the elevator can be closed automatically.
Data Chart for Casing Elevators
|
Elevator model
|
Elevator bore dimension
(mm)
|
Casing O.D.
|
Rating Load
(ton)
|
|
in
|
mm
|
|
SLX 117/(load)
|
117 (116.96)
|
4½
|
114.30
|
150
200
250
350
|
|
SLX 123/( )
|
123 (123.04)
|
4¾
|
120.65
|
|
SLX 130/( )
|
130 (130.18)
|
5
|
127.00
|
|
SLX 142/( )
|
142 (142.88)
|
5½
|
139.70
|
|
SLX 149/( )
|
149 (149.23)
|
5¾
|
146.05
|
|
SLX 156/( )
|
156 (156.58)
|
6
|
152.40
|
|
SLX 171/( )
|
171 (171.45)
|
6⅝
|
168.28
|
|
SLX 181/( )
|
181 (180.98)
|
7
|
177.85
|
|
SLX 197/( )
|
197 (197.64)
|
7⅝
|
193.68
|
|
SLX 200/( )
|
200 (200.81)
|
7¾
|
196.85
|
|
SLX 223/( )
|
223 (223.14)
|
8⅝
|
219.08
|
|
SLX 233/( )
|
233 (232.56)
|
9
|
228.60
|
|
SLX 248/( )
|
248 (248.44)
|
9⅝
|
244.48
|
|
SLX 254/( )
|
254 (254.79)
|
9⅞
|
250.83
|
|
SLX 277/( )
|
277 (277.83)
|
10¾
|
273.05
|
|
SLX 303/( )
|
303 (303.23)
|
11¾
|
298.45
|
|
SLX 331/( )
|
331 (331.80)
|
12⅞
|
327.03
|
|
SLX 344/( )
|
344 (344.50)
|
13⅜
|
339.73
|
|
SLX 350/( )
|
350 (350.85)
|
13⅝
|
346.08
|
|
SLX 360/( )
|
360 (360.76)
|
14
|
355.60
|
|
SLX 411/( )
|
411 (411.96)
|
16
|
406.40
|
|
SLX 478/( )
|
478 (479.43)
|
18⅝
|
473.00
|
|
SLX 515/( )
|
515 (515.14)
|
20
|
508.00
|
Chart for Tubing Elevators
|
Tubing size
|
Tubing O.D.
(mm)
|
Non-upset tubing
|
External-upset tubing
|
Rating load ton
|
|
Elevator bore(mm)
|
Elevator top bore
|
Elevator bottom bore
|
|
1.9
|
48.26
|
50.39 (50)
|
55.96 (56)
|
50
|
150
|
|
2⅜
|
60.33
|
62.31 (63)
|
68.66 (69)
|
62
|
|
2⅞
|
73.03
|
75.05 (75)
|
81.36 (82)
|
75
|
|
3½
|
88.90
|
90.88 (91)
|
98.02 (98)
|
91
|
|
4
|
101.60
|
103.58 (104)
|
110.72 (111)
|
104
|
|
4½
|
114.30
|
116.66 (117)
|
123.42 (123)
|
117
|
Chart for drill collar elevator for drill collars with zip lift recess
|
Dill collar O.D.
|
Drill collar with zip lift recess O.D.
mm
|
Clearance
mm
|
Elevator bore dimension. (mm)
|
Rated load
t(kN)
|
|
in
|
mm
|
top bore
|
bottom bore
|
|
4⅛
|
104.78
|
93.66
|
3.18
|
96.84
|
107.95
|
150
(1350)
|
|
4¾
|
120.65
|
107.95
|
3.18
|
111.13
|
123.83
|
|
5
|
127.00
|
114.30
|
3.18
|
117.48
|
130.18
|
|
6
|
152.40
|
136.53
|
3.18
|
139.70
|
155.58
|
|
6¼
|
158.75
|
142.88
|
3.18
|
146.05
|
161.93
|
|
6½
|
165.10
|
149.23
|
3.18
|
152.40
|
168.28
|
|
6¾
|
171.45
|
152.40
|
4.76
|
157.16
|
174.63
|
|
7
|
177.80
|
158.75
|
4.76
|
163.51
|
180.98
|
|
7¼
|
184.15
|
165.10
|
4.76
|
169.86
|
187.33
|
|
7¾
|
196.85
|
177.80
|
4.76
|
182.51
|
200.03
|
|
8
|
203.20
|
184.15
|
4.76
|
188.91
|
206.38
|
|
8¼
|
209.55
|
190.50
|
4.76
|
195.26
|
212.73
|
|
9
|
228.60
|
206.38
|
6.35
|
212.73
|
231.78
|
|
9½
|
241.30
|
219.08
|
6.35
|
225.43
|
244.48
|
|
9¾
|
247.65
|
225.43
|
6.35
|
231.78
|
250.83
|
|
10
|
254.00
|
231.78
|
6.35
|
238.13
|
257.18
|
|
11
|
279.40
|
257.18
|
6.35
|
263.53
|
282.58
|
|
14
|
355.60
|
333.38
|
6.35
|
339.73
|
358.78
|
Chart for drill collar elevator for drill collars without zip lift recess
|
drill collar OD
|
bore code
|
top bore
|
bevel
|
bottom bore
|
drill collar OD
|
bore code
|
top bore
|
bevel
|
bottom bore
|
|
2½"
|
201
|
221/32"
|
1/16"
|
221/32"
|
6⅜"
|
331
|
619/32"
|
1/16"
|
619/32"
|
|
2¾"
|
203
|
229/32"
|
1/16"
|
229/32"
|
6½"
|
135
|
623/32"
|
1/16"
|
623/32"
|
|
3"
|
205
|
35/32"
|
1/16"
|
35/32"
|
6¾"
|
338
|
7"
|
1/16"
|
7"
|
|
3⅛"
|
206
|
39/32"
|
1/16"
|
39/32"
|
7"
|
372
|
7¼"
|
1/16"
|
7¼"
|
|
3¼"
|
207
|
313/32"
|
1/16"
|
313/32"
|
7¼"
|
335
|
7½"
|
1/16"
|
7½"
|
|
3½"
|
209
|
321/32"
|
1/16"
|
321/32"
|
7½"
|
137
|
7¾"
|
1/16"
|
7¾"
|
|
3¾"
|
211
|
329/32"
|
1/16"
|
329/32"
|
7¾"
|
550
|
8"
|
1/16"
|
8"
|
|
4"
|
213
|
45/32"
|
1/16"
|
45/32"
|
8"
|
334
|
8¼"
|
1/16"
|
8¼"
|
|
4⅛"
|
519
|
49/32"
|
1/16"
|
49/32"
|
8¼"
|
347
|
8½"
|
1/16"
|
8½"
|
|
4¼"
|
548
|
413/32"
|
1/16"
|
413/32"
|
8½"
|
580
|
825/32"
|
1/16"
|
825/32"
|
|
4½"
|
215
|
421/32"
|
1/16"
|
421/32"
|
8¾"
|
226
|
91/32"
|
1/16"
|
91/32"
|
|
4¾"
|
354
|
415/16"
|
1/16"
|
415/16"
|
9"
|
356
|
99/32"
|
1/16"
|
99/32"
|
|
5"
|
552
|
53/16"
|
1/16"
|
53/16"
|
9¼"
|
227
|
917/32"
|
1/16"
|
917/32"
|
|
5¼"
|
219
|
57/16"
|
1/16"
|
57/16"
|
9½"
|
346
|
925/32"
|
1/16"
|
925/32"
|
|
5½"
|
411
|
511/16"
|
1/16"
|
511/16"
|
10"
|
228
|
1011/32"
|
1/16"
|
1011/32"
|
|
5¾"
|
222
|
521/32"
|
1/16"
|
521/32"
|
10½"
|
229
|
1027/32"
|
1/16"
|
1027/32"
|
|
6"
|
349
|
67/32"
|
1/16"
|
67/32"
|
11"
|
230
|
1111/32"
|
1/16"
|
1111/32"
|
|
6¼"
|
348
|
615/32"
|
1/16"
|
615/32"
|
|
|
|
|
|

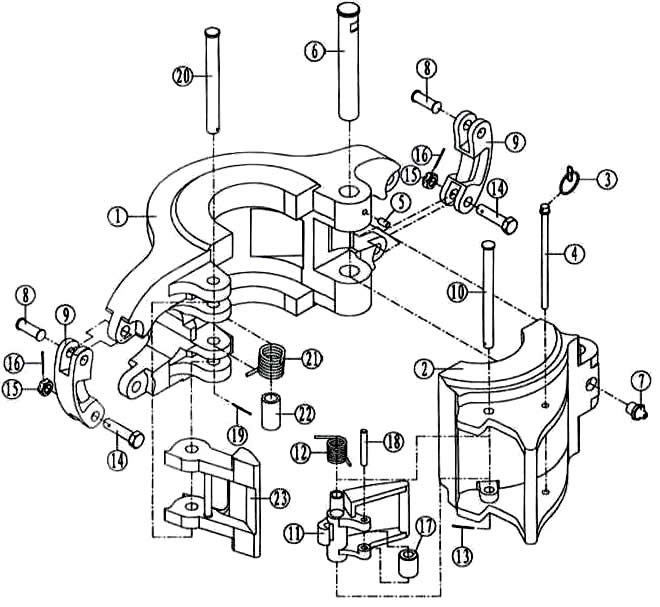

SLX side door elevators explosive drawing
SLX side door elevators explosive parts list
|
|
Name
|
Qty
|
S.N.
|
Name
|
Qty
|
S.N.
|
Name
|
Qty
|
|
1
|
Body
|
1
|
9
|
Link block
|
2
|
17
|
Roller
|
1
|
|
2
|
Door
|
1
|
10
|
Latch lock pin
|
1
|
18
|
Roller pin
|
1
|
|
3
|
Chain
|
1
|
11
|
Latch lock
|
1
|
19
|
Split pin
|
1
|
|
4
|
Safety pin/set latch pin
|
1
|
12
|
Latch lock spring
|
1
|
20
|
Latch pin
|
1
|
|
5
|
Hinge pin retainer
|
1
|
13
|
Retainer pin
|
1
|
21
|
Latch spring
|
1
|
|
6
|
Hinge pin
|
1
|
14
|
Link block pin
|
2
|
22
|
Pin carrier
|
1
|
|
7
|
Grease fitting
|
1
|
15
|
Cotter Pin
|
2
|
23
|
Latch
|
1
|
|
8
|
Link block bolt
|
2
|
16
|
Split pin
|
2
|
|
|
|
