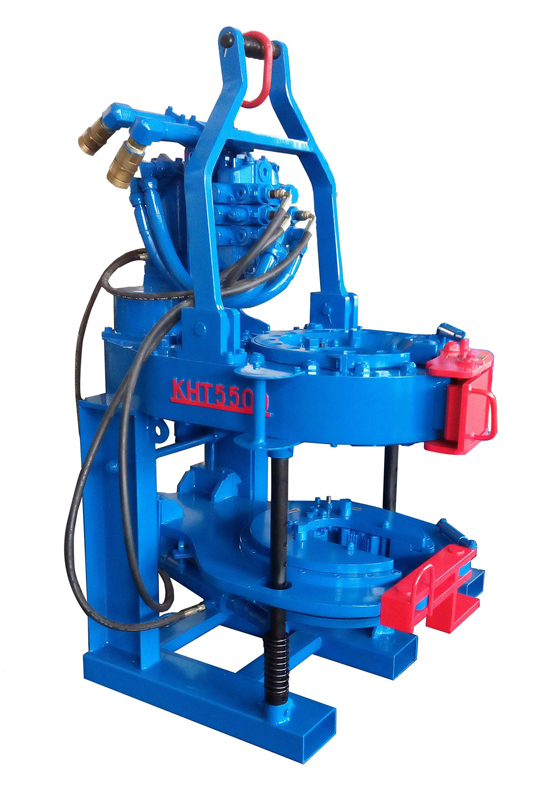

Our Model KHT5500 hydraulic power tongs is equivalent to McCoy's KT5500 hydraulic tubing tong. It’s an open power tong which is applicable to make up or break out 2 3/8"- 3 1/2" drill pipes, 3 1/2"- 4 1/2" tubing and 4 1/2"- 5 1/2" casing during oil field workover operation. And three-jaw-plate clamping device is adopted in the master tong and back tongs. The device may  ensure minimum string damage. It has high operation efficiency and may reduce working intensity of the workers. It can enhance screwing quality of the string and reduce string accidents caused by improper workover operation.

Characteristics:

1.          The tong head is the open structure which is quick and convenient for entering and retreating working position. The integral tong head has good hardness and rigidity;

2.          The three-jaw-plate clamping device is adopted in the master tong and back tongs. The device may ensure minimum string damage. The front two jaw plates of the master tong are in the swing structure and the back jaw plate is the roller-climbing structure. The assembly and disassembly is very convenient. The optimum tangent-diameter ratio design ensures reliable clamping and easy slope retreating. The back tong is the three-jaw-plate structure pushed by hydraulic cylinder. The structure is simple and the clamping is reliable;

3.          Four-gear rotation is adopted for large speed regulation range. And the rated torque is large;

4.         It has the braking mode with braking staple. The braking torque is large. The operation is simple. And it is convenient for repair and replacement;

5.          With the open large gear supporting structure, hardness and rigidity of open large gear is enhanced considerably;

6.          The shell is made of steel plate with high hardness. The overall hardness is good. Various jaw plates are made with fine casting and forging process. It has beautiful appearance and high hardness;

7.          Hydraulic torque indicator is provided. And installation interface of turning torque instrument is provided for computerized management.

Technical parameters of our KHT5500 Hydraulic Tong



1.      Applicable         range        Master tong: 23/8″--51/2″; Back tong: 23/8″--61/2″

2.      Opening size (master tong)     5 7/8″ (150 mm)

3.      Tong head speed:    High gear          78 RPM

         (@40GPM / 150 LPM)      Second high gear     33 RPM

                   Second low gear       22 RPM

                   Low gear 9.5 RPM

4.      Torque      High gear          2500 ft.lb/3400 N•m

 (@2000PSI / 14 MPa)    Second high gear     5900 ft.lb/8000 N•m

         Second low gear       8800 ft.lb/12000 N•m

         Low gear 20000 ft.lb/27000 N•m

5.      Overall dimensions (L×W×H)        48″×33.9″×67.3″ / 1220×860×1708 mm

6.      Weight: Master tong:      1230         lb Composite tong:  2100         lb

7.      Specifications  of  jaw plates: 5.5″(139.7mm),5″(127mm),  4.5″(114.3mm),  3.5″(88.9mm), 2.88″(73mm), 2.38″(60.3mm) and 6.5″(165.1mm)
