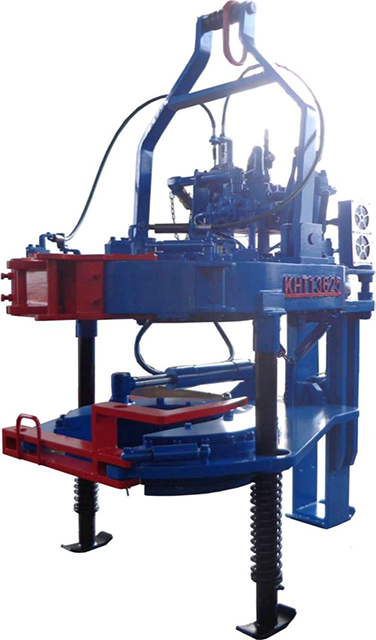

Our Model KHT13625 Casing Power Tong is a Chinese version of Farr Model KT13625 tong. It is used to make up and break out of casing ranging from 4″ up to 13 5/8″ in operations. It has greatly reduced the labor of worker, enhanced connection quality of thread and diminished accidents in inappropriate casing operation. The power tong has the following features as well:

□  Opening type, convenient and prompt to enter and slide off the working position, with an integral tong head of great strength and rigidity.

□  Double swing head jaws, convenient to assemble and disassemble.

□  Brake belt assembly, easy to operate and convenient to maintain and replace.

□  Open gear supporting structure, improving the strength and rigidity.

□  Wholly hydraulic mode and mechanical gear shift.

□  High strength steel plate used on the shell ， increasing the strength. The jaws are cast with precise technology, artistic and strong.

□   With hydraulic torque indicator and also installation interface, convenient to realize the computer management.

□  Use safety door hydraulic safety device，of great safety performance.

□  Large torque range，can meet the requirement of larger torque use.

Specification of KHT13625 Hydraulic Casing Tong

1.      Jaws available for casing sizes 4″-13 5/8″

Four kinds of common jaws that we supply: 5 1/2″ 、7″、9 5/8″、13 3/8″; Others: 4″、 4 1/2″、7 5/8″、8 5/8″、10 3/4″、11 3/4″、12 3/4″、13 5/8″jaws can be equipped according to customer's needs

2.      Opening size    355.4 mm

3.      Tong head rotation speed

High gear:        30     rpm Low gear: 6       rpm

4.      Rated torque

High gear:        8.4   kN.m

Low gear:        42     kN.m

5.      Rated pressure        16 MPa

6.      Work flow         150  L／min

7.      Hydraulic power unit        Flow 160  L／min

Pressure  20     MPa Motor power   37     kW

8.      Overall dimension(L×W×H) 1508×857×1194 mm

9.      Weight     619 kg (including Spring lifter assembly)
