Coiled Tubing Quad BOP

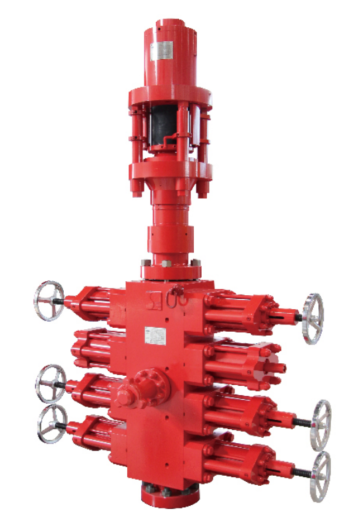

Our coiled tubing quad BOP has a four rams configuration to provide positive protection against blowouts and to secure the well in emergencies. This permits work to be carried out, under pressure, on surface equipment while the tubing is still in the wellbore. The quad features separate blind seal rams and shear rams, as opposed to a combination shear/seal ram design in the tri-modular BOP. The BOP is placed directly above the wellhead.



The quad BOP is similar in operation and features to the tri-modular BOP. Hydraulic closure system for the rams have manual overrides available. These overrides operate the rams in case of hydraulic failure and hold them mechanically locked once they are in the closed position. Pressure equalization operation is also identical.



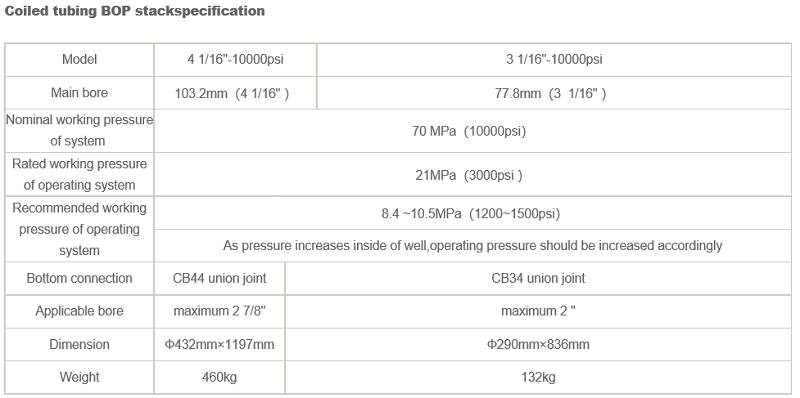

Our quad BOPs are available in nominal sizes from 2 9/16"" to 5 1/8", with working pressure ratings from 5000 PSI to 15000 PSI. The BOPs are useable in both standard and sour environments.



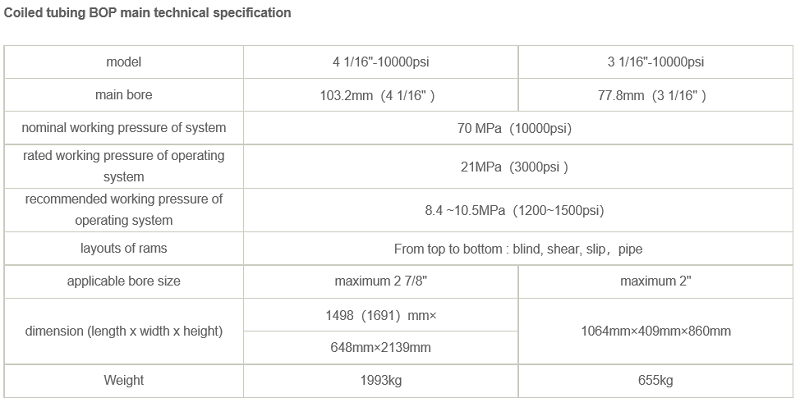

Standard ram assembly configurations are:

1) Blind seal rams - top set of rams that serve to seal-off well pressure when no tubing is present

 2) Shear rams - second set of rams that serve to shear the tubing

 3) Slip rams - third set of rams that serve to hold the tubing in place while shearing or for other applications

 4) Pipe seal rams - bottom set of rams that serve to seal around the tubing, thus isolating the wellbore pressure below the rams
