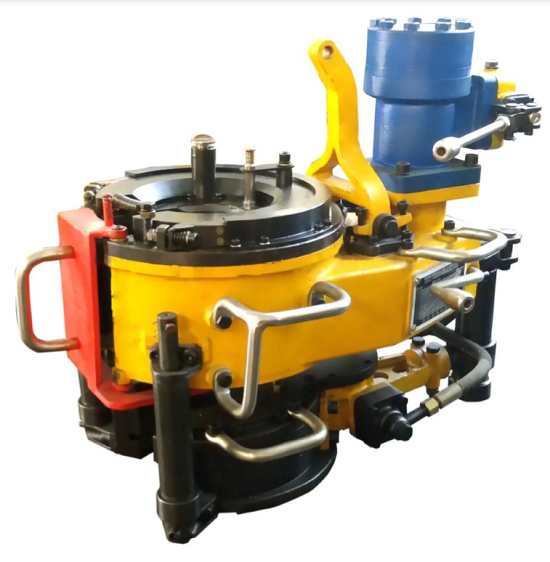

Model XQ114/9(4 1/2") hydraulic power
tong is an open type power tong for the making up and breaking out of tubing in
well services. This product has the following features:
1.1 The tong
is made up of master tong and backup tong, the master tong has a high and low
gear train, the tong is compact, light and efficient.
1.2 The
master tong and backup hydraulics operate on valve banks independent of each
other.
1.3 There is
an evident speed: high speed at top grade and large torque at low grade.
1.4 The tong
has incorporated a new system of disc brake to hold the jaws to connection more
effectively.
1.5 Makeup
and breakout are made easy with a simple turn to the reset knob on the tong and
backup.
1.6 The
backup has been supplied with quick coupling hoses and connections for quick
and easy installation for jobs where you need a backup and the backup can be removed
in seconds for jobs that a backup is not required.
2.1 Application
tubing range: 60mm -114mm (2 3/8"-4 1/2")
2.2 High
gear rated torque: 1.6 kN·m (1180 ft·lbs)
2.3 Low
gear rated torque: 9 kN·m (6637 ft·lbs)
2.4 High
gear max rotation speed: 80rpm
2.5 Low
gear max rotation speed: 14 rpm
2.6 Opening
of tong head: 118mm (4.6")
2.7 Overall
dimension (L×W×H): 930×572×650mm (36.6"×22.5"×25.6")
2.8 Weight: 330kg ( 727 lbs)
2.9 Rated
system pressure: 12MPa (1740 PSI)
2.10 Max
oil supply: 100L/min (26GPM)
