Model XQ114/6C Hydraulic Tubing Tong |
|
Appearance |
Specification |
DownLoad |
|

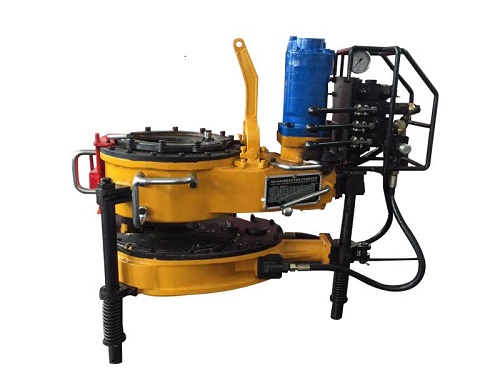

Model XQ114/6C hydraulic power
tong is an open type power tong for the making up and breaking out of tubing in
well services. Backup tong adopt planetary grip mechanism, belongs the
latest patented product. It
is used in making-up or breaking-out tubing, small drilling pipe and small
casing with diametersФ60,73,89,114mm.It adopts second gear to change speed,
equipped with hydraulic backup tong, it features simple structure, convenient
operation, reliable performance, long life, broad application range and large
torque. It can reduce workload, improve work
efficiency and the well service quality. This
product has the following features:
-
Adopted national invention patent, backup tong cannot change any
part within the range of suitable.
-
Adopted double valve patented technology, ensure the backup tong
is reliable, it also has the overload protection function.
-
Addition gate unloading mechanism, the tong stops when the door
open, the tong starts when the door closed, make the operator safer.
-
Backup tong can stuck coupling and tubing.
-
Customers can selective equipped torque control system, it can
show, record and control make up torque
Master Tong
|
Application range
|
Ф60,73,89,114 mm pipeline, drill rod
subs and small casing piple
(2 3/8"~4 1/2")
|
High gear rated torque
|
1.65 kN.m
|
Low gear rated torque
|
6.0 kN.m
|
High gear max rotation speed
|
85 r/min
|
Low gear max rotation speed
|
23 r/min
|
|
Backup Tong
|
Application range
|
Ф60~141.5 mm pipeline, coupling and
drill rod sub (2 3/8"~5 9/16")
|
Rated system pressure
|
12 MPa
|
Max oil supply
|
100 L/min
|
Combination tong weight
|
304 kg
|
Overall dimension (L×W×H)
|
900×515×710 mm
|
|
|
|
