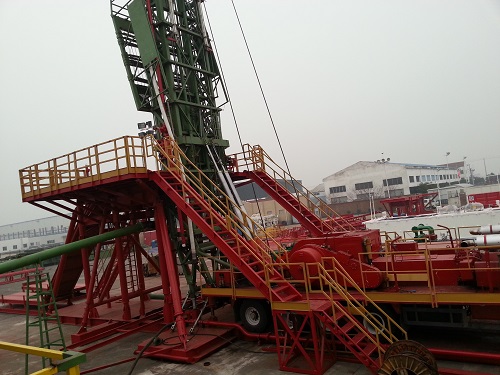

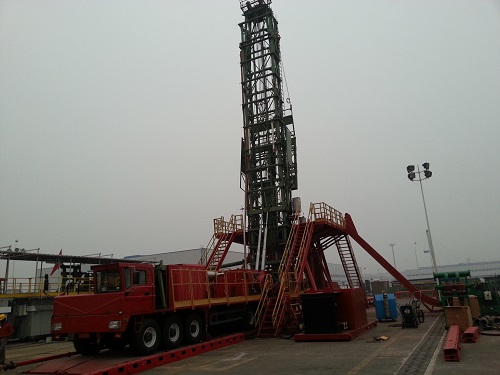

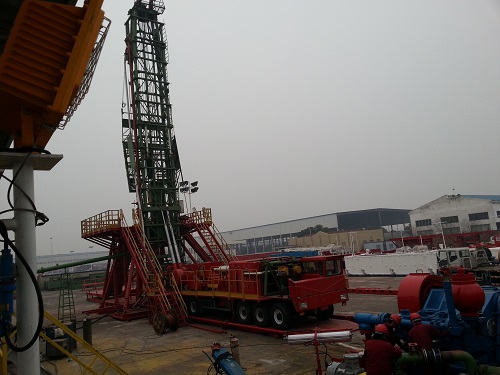

750HP Truck-mounted Drilling Rig, drilling depth up to 3000m (4 1/2’’DP), main technique parameter are as follows:
Drilling depth 3000m (4 1/2’’ DP) 2500m (5” DP)
Nominal hook load 1500KN
Max. static load 1800kN

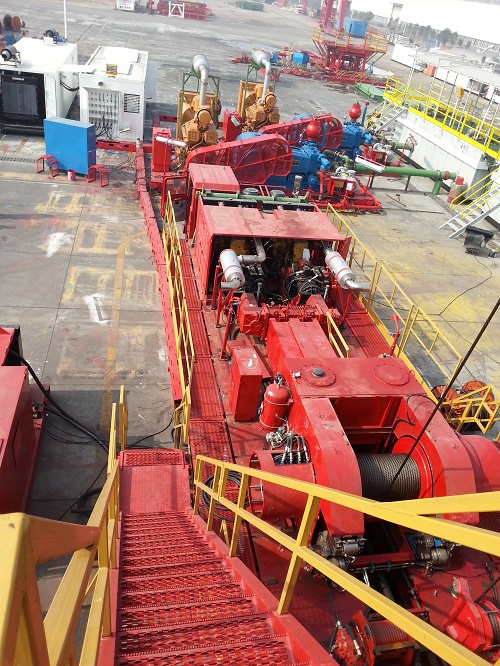

Drawworks horsepower 750hp

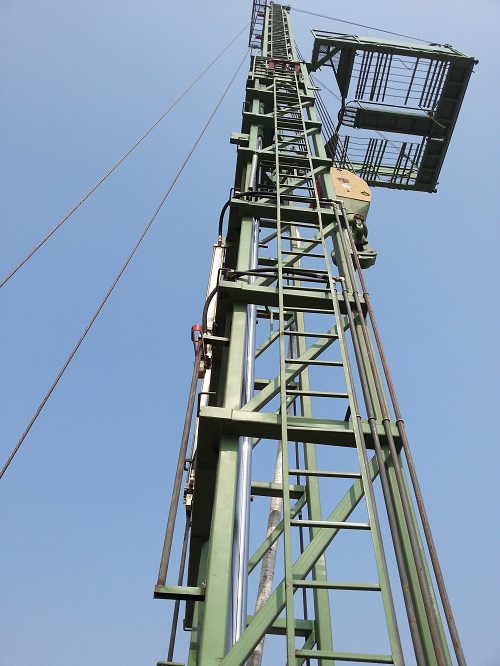

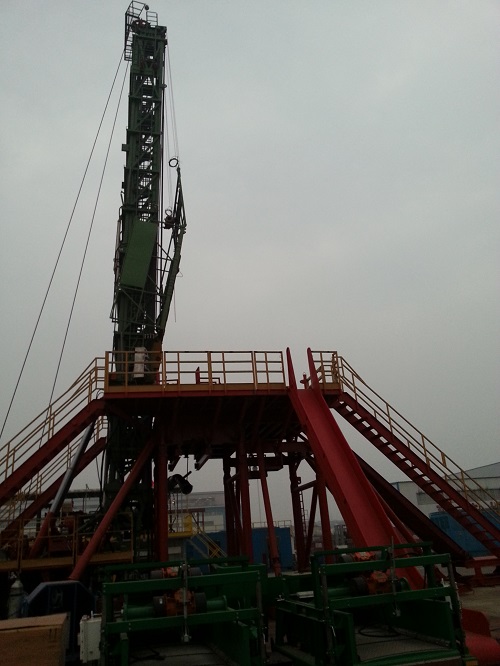

Mast height 38m
Height of racking board (to drill floor) 17.2m

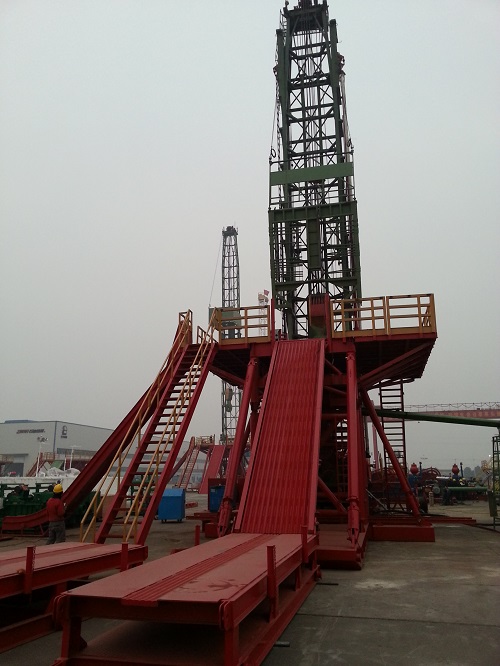

Height of substructure 6m
Traveling system 5x6
Drive type, carrier 14×8
Diameter of wire line ¢29
Traveling dimensions 16.03mx3.3mx3.2m (without mast)
Limiting speed 45km/h
Min. turning radius 21m
Traveling weight 54500kg (without mast)
Ambient temperature -19 ~ +50 ℃
