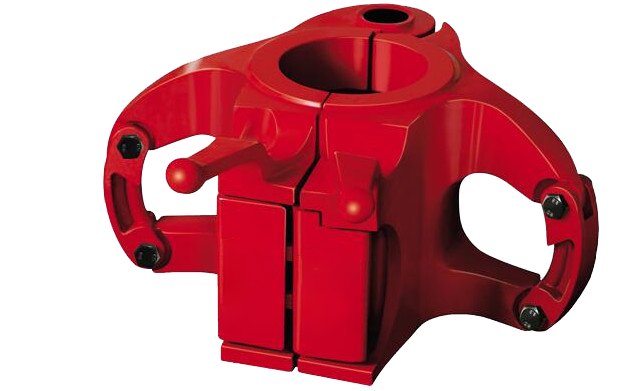

Model TA center latch elevators with square shoulder are suitable for handling drill pipe ( square shoulder type ), drill collar, casing and tubing. The products are designed and manufactured according to the requirements in API Spec 8C Specification for Drilling and Production Hoisting Equipment.
Model
|
Pipe OD (in)
|
Rated Capacity (US Tons)
|
TA/35
|
1.05
- 2.7/8
|
35
|
TA/65
|
1.66
- 2.7/8
|
65
|
TA/100
|
2.3/8
- 2.7/8
|
100
|
2.3/8
- 5
|
TA/150
|
4.1/8
- 8.5/8
|
150
|
9
- 11.1/4
|
|
