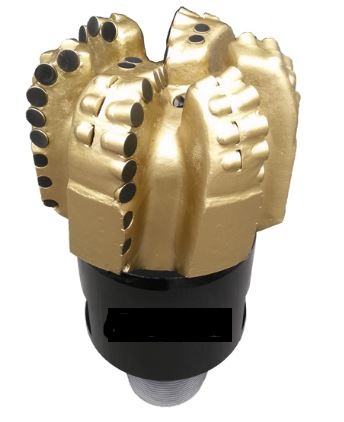

Matrix body PDC Bits



Features



Advanced tungsten carbide material matrix body 20% improvement in erosion resistant than precious matrix bit

Less cutting structure less and bit body damage

Provide multiple advantages in interbedded lithology.

Enhanced bit stability for BHA shock and vibration mitigation.

Increase cleaning and reduce balling.

Superior PDC cutter technology made a perfect performance on impact strength resistance and abrasive resistance.

Dual row cutter extend the aggressiveness and durability.

The FEA software for the cutters distribution and layout made the drilling more efficient and reduce NPT.

Optimize the angle of the cutter in both axial and radial by FBS (force balance analyze) software resulting in stronger aggressive and more durability of the bit.

DOC(depth of cutters) was calculated and optimized by a series experiences of the bit, made the cutter penetrate the formations more rationally.



Option Features



Gauge length

Short：Improved bit steerability and tool face control for directional or horizontal drilling, reduce slide section by achieve builds more quickly.

Extend：Enhances bit stability and allows more area for gauge protection components, improves bole hole quality.



Active gauge

Protect the gauge and improved hole quality



PDC Cutters

Different features of PDC cutters can be chosen  in different wells or formations for maximizing both drill efficiency and economic
