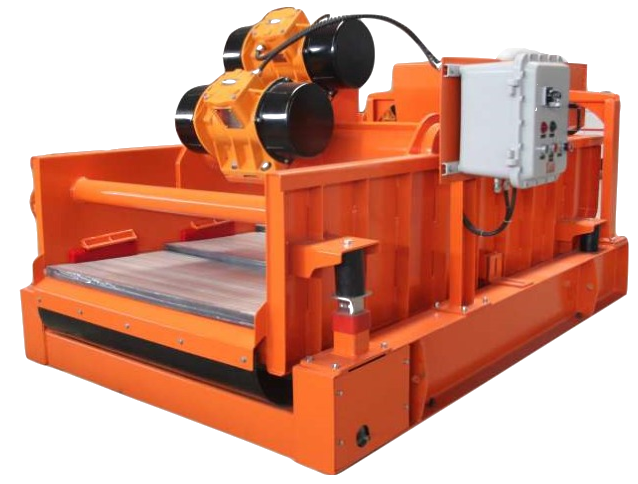

MODEL:ZS104
Capacity: 150m³/h (660GPM)
Rated Motors Output: 1.865KW(2.5hp) X2
Output Force: ≤8.5Gs
Filtering Area:2.73m² (30 ft²)
Operating Temperature: 30℃(86°F)
Design Range: -55~60℃ (-67~140°F)
Noise Data:75-85 dBA
Approvals: UL/ATEX/ BV/IADC/ JAS-ANZ ISIO 9001: 2015
Deck Adjustment: -1~5°
Power: 220V-600V 50Hz-60Hz
Screen Qty: 4 Pcs
Weight: 1480 Kg
Dimension: 2950 X 1690 X1420 mm
Remark:
Mud Density: 1.2g/cm³ Mud Viscosity: 45s Screen: 40 mesh
