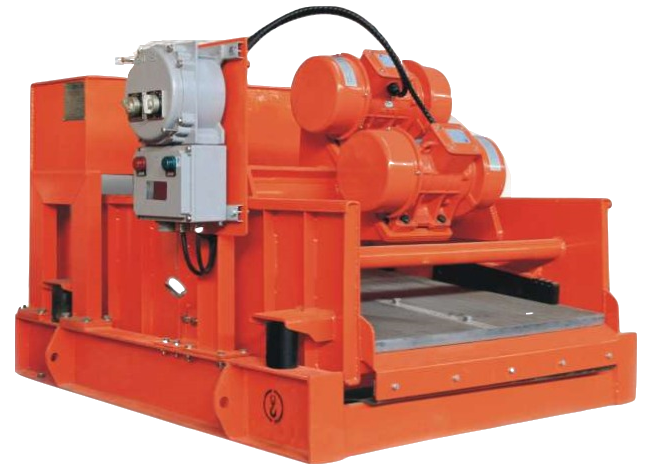

Model: ZS102D Shale Shaker
Capacity: 60-150m³/h(264-660GPM)
Rated Motors
Output: 0.75KW(1hp)×2
Output Force
≤7.5Gs
Filtering Area: 1.35m² (15ft²)
Operating
Temperature: 30℃(86°F)
Design Range:
-55~60℃ (-67~140°F)
Noise Data: 75-85
dBA
Approvals:
UL/ATEX/ BV/IADC/ JAS-ANZ ISIO 9001:
2015
Deck Adjustment: 5°
Power:
220V-600V 50Hz-60Hz
Screen Qty: 2 Pcs
(Polyurethane material)
Weight: 760 Kg
Dimension: 1650ⅹ1430ⅹ1040
mm
Remark:
Mud Density: 1.2g/cm³ Mud Viscosity: 45s Screen: 40 mesh
