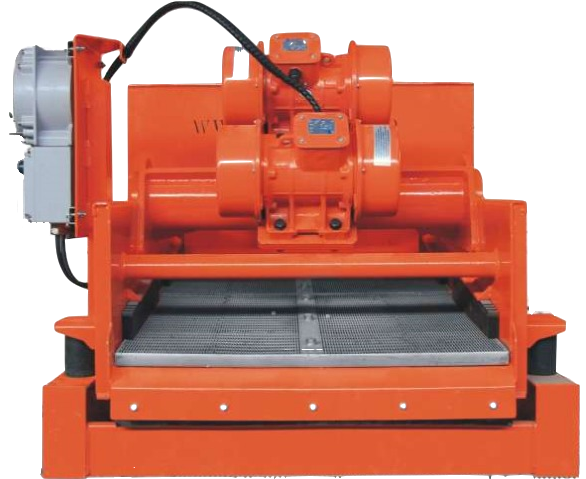

Model: ZS103D Shale Shaker
Capacity: 150-300m³/h(660-1320GPM)
Rated Motors
Output: 1.94KW(2.6hp)×2
Output Force
≤7.5Gs
Filtering Area: 2.2m² (24.5ft²)
Operating
Temperature: 30℃(86°F)
Design Range:
-55~60℃ (-67~140°F)
Noise Data: 75-85
dBA
Approvals:
UL/ATEX/ BV/IADC/ JAS-ANZ ISIO 9001:
2015
Deck Adjustment: 10°
Power:
220V-600V 50Hz-60Hz
Screen Qty: 3 Pcs
(Polyurethane material)
Weight: 1600 Kg
Dimension: 2027ⅹ1685ⅹ1611
mm
Remark:
Mud Density: 1.2g/cm³ Mud Viscosity: 45s Screen: 40 mesh
