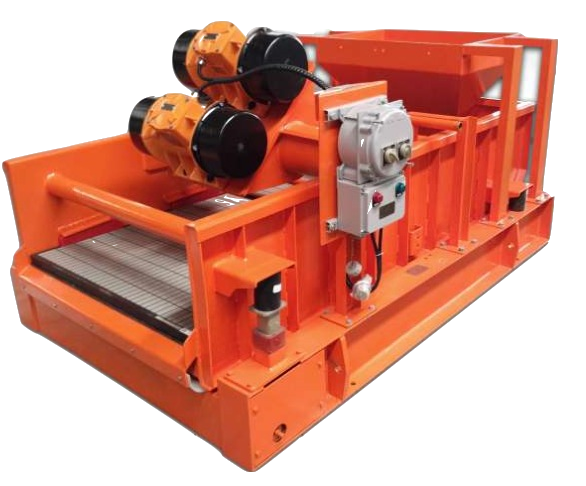

Model: ZS104G Shale Shaker
Capacity: 150m³/h(660 GPM)
Rated Motors
Output: 1.865KW(2.5hp)×2
Output Force ≤8.5Gs
Filtering Area: 2.73m² (30ft²)
Operating
Temperature: 30℃(86°F)
Design Range:
-55~60℃ (-67~140°F)
Noise Data: 75-85
dBA
Approvals:
UL/ATEX/ BV/IADC/ JAS-ANZ ISIO 9001:
2015
Deck Adjustment: -1~5°
Power:
220V-600V 50Hz-60Hz
Screen Qty: 4 Pcs
(Polyurethane material)
Weight: 2000 Kg
Dimension: 2890ⅹ2715ⅹ1900
mm
Remark:
Mud Density: 1.2g/cm³ Mud Viscosity: 45s Screen: 40 mesh
