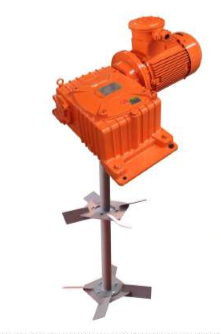

1621 Mud Agitator
Mud Agitator
Introduction
Appearance
Specification
DownLoad
Model
JBQ5.5 / 7.5 /11/15/18.5 / 22
Power
5.5KW / 7.5KW / 11KW / 15KW / 18.5KW / 22KW
Impeller Speed
60/72 RPM
Impeller Dia
600mm / 750mm / 850mm
Ration
25 : 1
Dimension
870 x 600 x 560mm / 906 x 600 x 560mm
/1075 x 650 x 630mm /1170 x 720 x 685mm
Power
380V/50HZ or 460V/60Hz
Shaft Length
According to tank inside depth
