H225DB Helicopter Drilling Rig

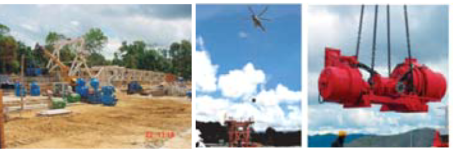

H225DB Helicopter drilling rig is powered by AC VFD, and the drawworks, rotary table and mud pump are independently driven by AC motor respectively. It can be fitted with a top drive system. The rig (including main unit and unitized equipment) is composed of approximately 90 transportation modules, and each module does not weight more than 10t (22000lbs).

• The drawworks, rotary table and mud pump are separately powered by VF motor.

• K-type swing-up mast, installed in low position and raised as a whole.

• Modularized foldable drill floor.

• Modules are connected with standard pins, and can be conveniently.

• dismantled and assembled using special pin-removing tools.

Model	H225DB
Nominal drilling depth (5/4-1/2" DP)m (ft)	3200(10500) / 4000(13100)
Workover depth (2-7/ 8"DP) m (ft)	2250(500000)
Max. hook load kN(lb)	N/A
Max. hook lifting speed m/s(ft/s)	1.5 (4.92) (12lines)
Diameter/effective number of drilling linemm(in)	Ф32 (1-1/4H )/10
Number/Max. weight of modules t(lb)	90/< 10(22000)
Drawworks power kW(hp)	735(1000)
Rated power x number of mud pumps kW(hp)	600 (800) x 3
Speed, drawworks	1F1R, stepless speed regulation
Type of main brake / auxiliarybrake	air-cooled hydraulic disc brake/dynamic brake
Mast type	SJJ225/43- K-mast
Effective height of mast m(ft)	43 (145 )
Racking capcity(4-1 /2"DP)m(ft)	4500 ( 14800 )
Max. wind load km/h (kn)	65 ( 35 )
Max. wind load km/h (kn)	65 ( 35 )
Drill floor model/height m(ft)	SZT225/7.5-Z/7.5(24.6)
Height under rotary beam m(ft)	6.2 (20.3)
Floor area m²(ft²)	10x9(33x30)
Setback capacity m(ft)	4500(14800)
Rated pressure, air system MPa (psi)	0.8-1(114-143)
Rotary table model/opening size mm(in)	SZP275/ Ф698.5(27-1/2")
Traveling hook /swivel	SY G225/XSSL225
Top drive	TDS-10SA
Installed power	3500kW
