H315DB Helicopter Drilling Rig

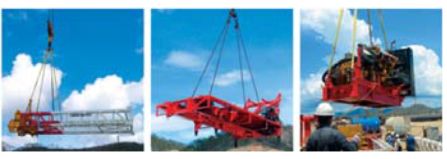

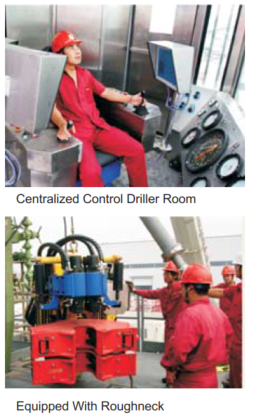

H315DB Helicopter drilling rig is powered by AC VFD, and the drawworks, rotary table and mud pump are independently driven by AC motor respectively. It is equipped with a hydraulic top drive. The rig (including main unit and unitized equipment, drilling string and fishing tools) is composed of approximately 480 transportation modules, and each module does not weight more than 2.72t (6000lbs).

■   Each module does not able and mud pump are separately powered by VF motor, and a hydraulic top drive device is equipped.

■   K-type swing-up mast, installed in low position and raised as a whole

■   Modularized foldable drill floor. weight more than 2.72t (6000lbs).

■   Instruments and gauges can work in hot and humid areas like tropical rain forest.

■   Modules are connected with standard pins, and can be conveniently dismantled

and assembled using special pin-removing tools.

Model	H315DB
Nominal drilling depth (574-1/2,lDP)m (ft)	4500( 14760)/5000( 16400)
Workover depth (2 一 刀 8"DP) m (ft)	3200(700000)
Max. hook load kN(lb)	N/A
Max. hook lifting speed m/s(ft/s)	1.5 (4.92)(12lines)
Diameter/effective number of drilling linemm(in)	Ф32 (1-1/4") /12
Number/Max. weight of modules t(lb)	480/<2.73(6000)
Drawworks power kW(hp)	1100(1500)
Rated power x number of mud pumps kW(hp)	600 (800) x 3
Speed, drawworks	1F1R, stepless speed regulation
Type of main brake / auxiliarybrake	air-cooled hydraulic disc brake/dynamic brake
Mast type	SJJ315/45- K-mast
Effective height of mast m(ft)	45 ( 145 )
Racking capcity(4-1 /2"DP)m(ft)	5750 ( 18860 )
Max. wind load km/h (kn)	65 ( 35 )
Max. wind load km/h (kn)	65 ( 35 )
Drill floor model/height m(ft)	SZT315/7.5-2/7.5(24.6)
Height under rotary beam m(ft)	6.2 (20.3)
Floor area m2(ft2)	11.5 x 10.5(37x34)
Setback capacity m(ft)	5750(18860)
Rated pressure, air system MPa (psi)	0.8-1(114-143)
Rotary table model/opening size mm(in)	SZP275/ Ф698.5(27-1/2”)
Traveling hook /swivel	SYC315/SSL450 or TESCO 250
Top drive	TESCO 250
Installed power	4100kW
